How LitterLens works comes down to three steps: a camera clipped to the litter box detects each visit, image analysis links the visit to a cat and reads the stool image, and the app compares each cat with its own history. It records visits, duration, stool shape and colour, and urine clump events. It does not diagnose disease, and the sections below say plainly where its limits are.
What does the camera itself do?

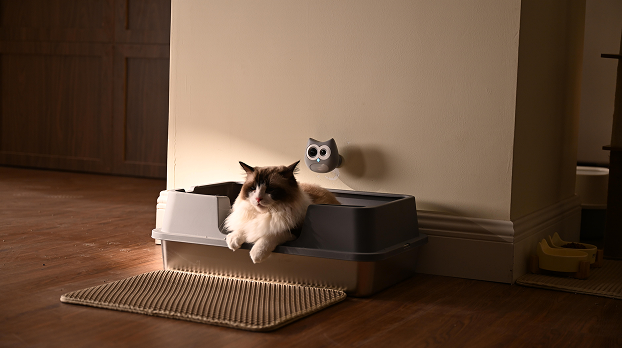

LitterLens is a small camera that mounts on the litter box and points at the litter area. It records at 1080p and 15 frames per second, with a field of view of 134° by 84°. That is enough to see a cat entering, the litter surface and any stool left behind, though it is not a wide room camera.
To save battery, the camera stays idle until an infrared sensor notices something nearby. It then runs a second check to confirm the visitor is a pet before recording. A white fill light provides night vision. A privacy mode lets you switch the camera off. The battery is 5000 mAh and lasts about a month in typical use. See the how it works page for the setup overview.
How does it recognize each visit and each cat?
Once a visit is confirmed, image analysis compares the cat in the video with the profiles you have created. You label each cat once in the app, and later visits are matched to the most likely profile. That turns one shared box into a separate history for each cat.
The matching is not perfect. Cats with similar coats, a blocked view, poor lighting or a changed camera angle can cause a wrong label, and reliability decreases in homes with more than 5 cats. The app supports up to 10 cats. You can review a visit video and reassign it to the right cat, so check labels during the first week. Our article on multi-cat litter box identification goes deeper on this step.
What does it record for each visit?
| Record | What it is | Limit |
|---|---|---|
| Visit count | How many times each cat used the box per day | Depends on correct cat labels |
| Visit duration | Time each cat spent in the box | Long visits show that something changed, not what |
| Stool images | Shape (hard, soft, watery) and colour (for example black, red, grey, green, orange-yellow) | Needs a clear view of the stool; litter cover can hide it |
| Urine clump events | Logged when a urine clump is detected | Does not measure clump size or analyze urine |
These records are objective, dated and searchable, which is why they are useful. They are also narrow. The camera watches the box, not the cat's whole day.
How is this different from a general pet camera?
A general pet camera shows a room, and finding one litter box visit means scrubbing through footage. A camera dedicated to the box logs each visit as an event with a time, a duration and a cat label, so you can jump straight to the moment you care about.
It also keeps its view narrow: the box, not the living room. The trade-off is that it tells you nothing about the rest of your cat's day. If you want to watch play, hiding or behavior around the house, that is a job for a behavior camera such as PawTrack, which does not analyze stool.
How does it decide something has changed?
A single litter box visit says little. What matters is whether a cat's pattern shifts from its own normal. LitterLens builds a baseline for each cat from about 7 days of visits, and the baseline becomes more stable after roughly 30 days. Deviations are flagged against that cat's baseline, not against a fixed number, because cats differ in how often they visit.
The baseline needs time. In the first week the app is still learning, and a cat that is already unwell when you install the camera will start with an unusual baseline. Treat early flags as prompts to look, and talk to your vet about what is normal for your cat. Our article on how a litter box tracker detects early health issues covers what patterns to watch.
What can it not do?
The list of limits is as important as the list of features:
- It does not diagnose. All output is informational, and a vet confirms any condition.
- It does not detect kidney disease, urinary tract infections, bladder stones, vomiting, parasites or dehydration.
- It does not weigh your cat or see posture.
- It cannot tell you why stool changed, only that it did.
- It needs a flat mounting surface and a box larger than 50 by 38 cm, and it is not recommended for automatic or self-cleaning boxes.
Cornell's Feline Health Center lists difficult or painful urination, more frequent urination and urinating outside the box among the signs of lower urinary tract disease. A camera can log more frequent or longer visits, but it will not see the rest of that list. Urine color, straining and pain are things you watch for yourself.
What does Care+ add?

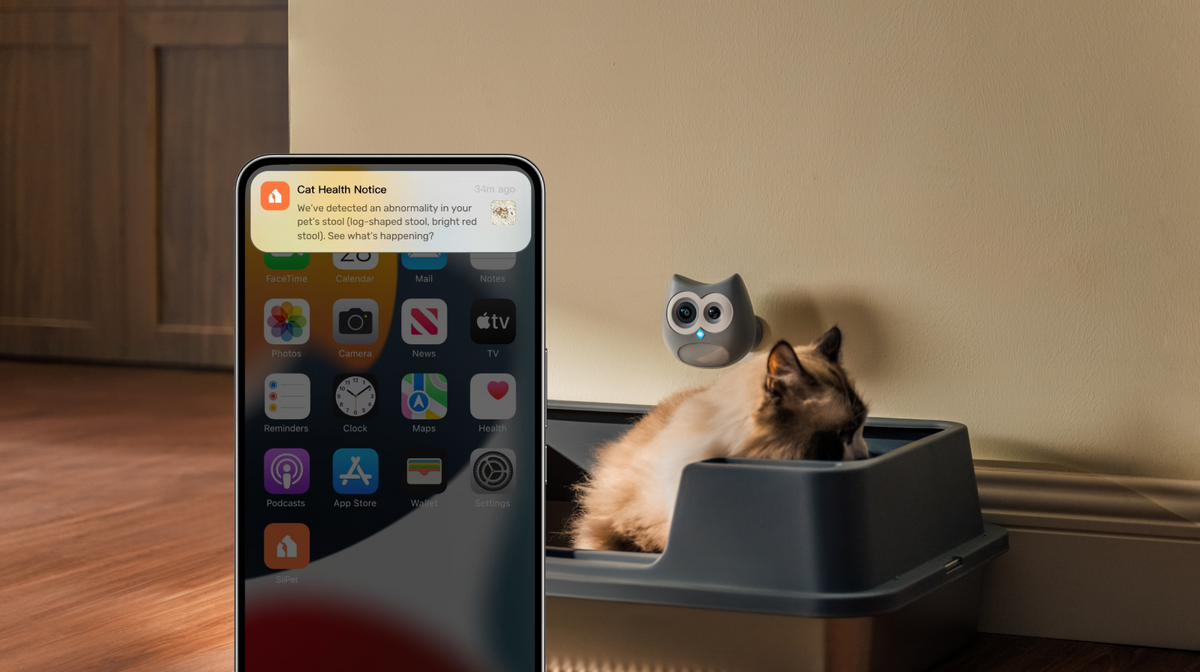

The free tier gives you live view, recording, visit count and duration data, 72 hours of local storage and low-battery alerts. Abnormal stool and abnormal data alerts, along with the analysis behind them, require the Care+ subscription, which costs $5.9, $9.9 or $12.9 per month depending on how many devices you have. You can review the timeline yourself without it. Care+ mainly saves you from scanning every event for something unusual.
How should you use the data?
Use it to decide when to call the vet and to describe what you saw. A dated set of visit counts and stool images answers the questions vets ask most: when it started and how often it happens. For a practical checklist, see our guide to sharing pet health data with your vet.
Some situations are urgent no matter what the app says. A male cat straining with little or no urine needs a vet immediately, a cat with no urine for 24 hours needs a call the same day, and no stool for 48 hours also needs a vet. Do not wait for another alert.
FAQs About How LitterLens Works
Does LitterLens use AI to diagnose problems?
No. It uses image analysis to detect visits, identify cats and read stool images. It does not diagnose. A vet interprets what the records mean.
How long until it knows my cat's normal?
About a week to start, about a month to settle. The baseline forms from roughly 7 days of visits and becomes steadier after about 30 days.
Does it work with an automatic litter box?
It is not recommended. Moving parts can block the view or the camera mount. Use a regular box larger than 50 by 38 cm on a flat surface.
Can it analyze urine?
No. It logs urine clump events but does not test, measure or analyze urine.
Where should I mount it?
On a flat surface of the box with the litter area in view. Our guide on where to place your litter box camera shows workable positions.
Bottom line
LitterLens turns litter box visits into a per-cat timeline of visits, stool images and urine clump events. Read it as context for your vet, and combine it with what you see at home. Browse the cat health monitoring collection if you want to see the options.
